Cultivators SMS Atos

Make:	SMS
Model:	Atos
Working Width:	3-5 m
Operating Speed:	7-12 km/val.
Required power:	80-130 HP
Tillage Depth:	Max. 30 cm
No. of Ploughshares:	10-16

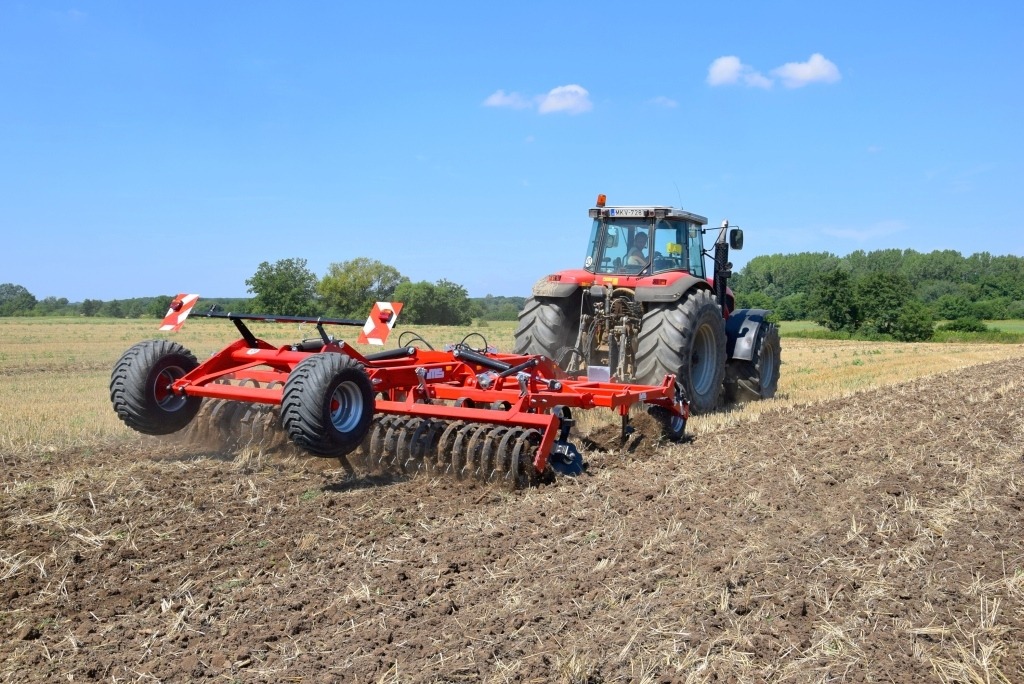

Atos are versatile machines that can be used for pre-sowing preparation as well as post-harvest soil cultivation in minimization technologies. With application of wide winged shares cultivator can process soil at depth of 5-20 cm. Maximal depth is up to 30 cm when using chisels without wings.

3 rows of tines
Tine distance 30 cm
Working depth up to 30 cm

Advantages:

Robust and quality designed frame construction from steel profiles 100x100x8 and 120x100x8 mm.
Easy maintenance thanks of low number of points for lubrication and fine components from top-class suppliers
Easy control and machine setting
Option to choose from 4 different types of tines, wide range of accessories and rollers for all conditions
Option to choose tough and maintenance-free tines S40 with ability to waggle to three directions.

+370 650 49269

Contact for product

Technical information
VIDEO

Model	300	360	440 N	480 H	440 P	500 P
Min. power output (kW)	80	120	130	130	120	130
No. of tines	10	12	14	16	14	16
Tine distance (cm)	29	29	31,5	30	31,5	31,5
Max. working depth (cm)	30	30	30	25	30	30
Transport width (mm)	2980	3950	2980	2980	3000	2980
Working width (cm)	300	360	440	480	440	500
Tire size	-	-	-	-	400/60-15,5	400/60-15,5
Weight * (kg)	1180	1400	2200	2300	3020	3500
Linkage category	III/2	III/2	III/2	III/2	III	III
Working speed (km/h)	7-12	7-12	7-12	7-12	7-12	7-12
Transport speed (km/h)	20	20	20	20	20	20

Machine construction:

Atos 300- 360- carried, one-part frame

Atos 440 N- carried, hydraulic folded, two-part frame

Atos 480 H- carried, hydraulic folded, three-part frame

Atos 440 P- 500 P- semi-carried, hydraulic folded, two-part frame
