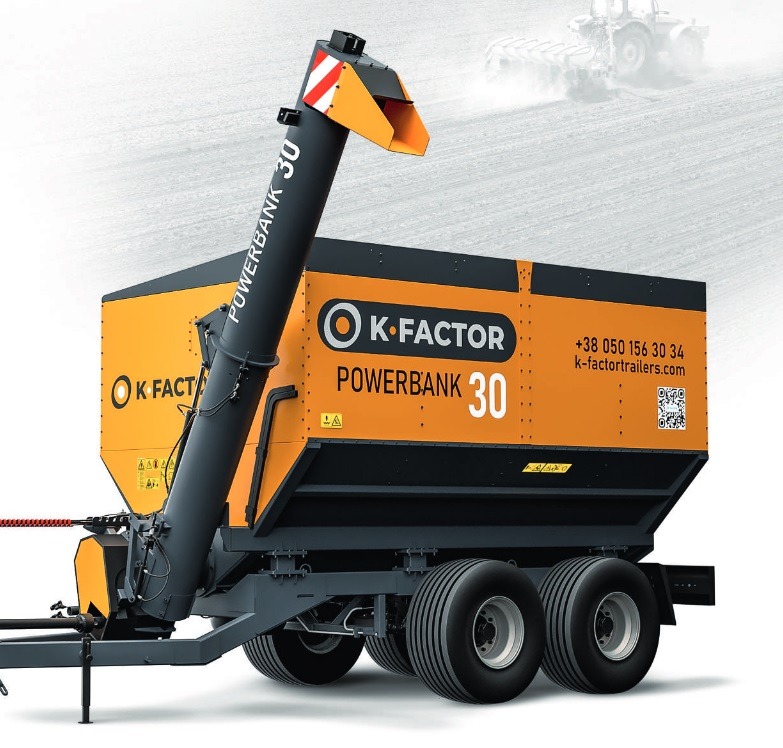

Grain handling semi-trailers POWERBANK-30

EFFICIENCY OF USE
• Improved combine performance through continuous operation and simultaneous unloading of grain
• Improved performance of seeders during loading
• The load cell system, equipped with a computer and printer, allows for precise control over load weight and hopper location.
This allows the operator to control the load at all times.
• Field grain weighing and hydraulic screw extension system
• Hydraulic screw folding mechanism
• Hydraulic control system for the screw belt drive
• Screw belt drive
• Gearbox and drive shaft Bondioli&Pavesi (Italy)
• Reliable chassis with an extended maintenance-free cycle
• Pneumatic single-circuit braking system
• Wheels with a wide range of tires.

Technical characteristics
Useful hopper volume, m3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Load capacity, kg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26,000
Hopper weight, kg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7,480
Gross weight, kg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33,480
Tractor’s required power, hp . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180–220
Maximum speed, km/h . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Number of screws . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Screw diameter, mm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 460
Screw capacity (unloading rate), m3/min . . . . . . . . . . . . . . . . . . . . . . . 12.3
Number of axles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Unloading height, mm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4,200
Support load on the traction loop, kg . . . . . . . . . . . . . . . . . . . . . . . . 2,000
Traction loop height (adjustable), mm . . . . . . . . . . . . . . . . . . . . . . 450–550
Pneumatic brake system, single-circuit
Suspension . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . tandem-type
Tires
• basic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .550/60 R22.5"
• option . . . . . . . . . . . . . . . . . . . . . . . . . . . 650/50 R22.5 or 650/50 R26.5"
Tire pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.8
Pressure on the field surface, kg/cm2 . . . . . . . . . . . . . . . . . . . . . . . . . 0.74
Gearbox and drive shaft . . . . . . . . . . . . . . . . . . . . . Bondioli&Pavesi (Italy)
Quick unloading hatches (bottom) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Weighing system with printer . . . . . . . . . . . . . . . . . . . . . . . . . . . optional
Tenting system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . optionally
Transport width, mm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3,000
Dimensions in transport position
(length × width × height), mm . . . . . . . . . . . . . . . . . . . 7,500 × 3,000 × 3,400
